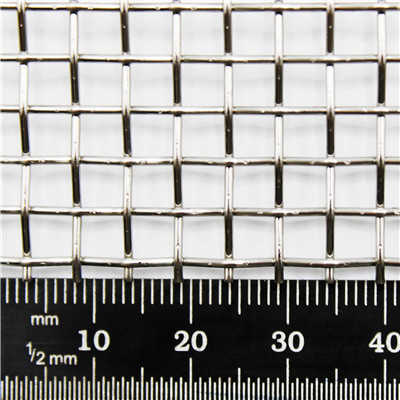

What is 5 mesh stainless steel wire mesh

5 mesh stainless steel wire mesh is used for a large number of applications, including

Fine Car Grille,

Heater guard ,

Beekeeping Queen excluder,

Safety guard,

Decorative / Cosmetic Mesh

What is it 5 mesh stainless steel wire mesh ?

The mesh count refers to how many holes there are on a linear inch on the material i.e. if you place a ruler on the mesh, our 5 Mesh would have 5 holes per linear inch.

5 mesh stainless steel wire mesh materials

We can offer either standard grade 304 stainless steel, or the higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.

5 mesh stainless steel wire mesh specifications

mesh	wire D		aperture L		open area rate	square meter weight
	mm	inch	mm	inch	%	kgs	lbs
5	1.0	0.0393	4.08	0.1606	64.50	2.50	5.50
5	0.9	0.0354	4.18	0.1645	67.70	2.02	4.45
5	0.8	0.0314	4.28	0.1685	70.98	1.60	3.52
5	0.7	0.0275	4.38	0.1724	74.33	1.22	2.68
5	0.6	0.0236	4.48	0.1763	77.77	0.90	1.98
5	0.5	0.0196	4.58	0.1803	81.28	0.62	1.37

stainless steel wire mesh package

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture proof paper or plastic film, outside wooden cases or wooden pallet.
