What is 20 mesh stainless steel wire mesh

What is it 20 mesh stainless steel wire mesh ?

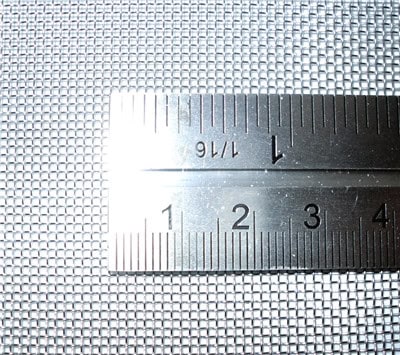

The mesh count refers to how many holes there are on a linear inch on the material i.e. if you place a ruler on the mesh, our 20 Mesh would have 20 holes per linear inch.

20 mesh stainless steel wire mesh is used for a large number of applications, including

Car Scuttle panel,

Oil pickup strainer,

Fire / spark guard,

Kayak and canoe repair,

plastic welding reinforcement,

Decorative / cosmetic mesh

RFI shielding

Battery mesh

20 mesh stainless steel wire mesh materials

We can offer either standard grade 304 stainless steel, or the higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.

20 mesh stainless steel wire mesh specifications

mesh	wire		aperture		open area rate	square meter weight
	mm	inch	mm	inch	%	kgs	lbs
20	0.50	0.0196	0.770	0.0303	36.75	2.50	5.50
20	0.45	0.0177	0.820	0.0322	41.68	2.02	4.44
20	0.40	0.0157	0.870	0.0342	46.92	1.60	3.52
20	0.35	0.0137	0.920	0.0362	52.47	1.22	2.69
20	0.30	0.0118	0.970	0.0381	58.33	0.90	1.98
20	0.27	0.0106	1.000	0.0393	62.00	0.72	1.60
20	0.25	0.0098	1.020	0.0401	64.50	0.62	1.36
20	0.23	0.0090	1.040	0.0409	67.05	0.52	1.16
20	0.21	0.0082	1.060	0.0417	69.66	0.44	0.97
20	0.19	0.0074	1.080	0.0425	72.31	0.36	0.79
20	0.17	0.0066	1.100	0.0433	75.02	0.28	0.63
20	0.15	0.0059	1.120	0.0440	77.77	0.22	0.49

stainless steel wire mesh package

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture proof paper or plastic film, outside wooden cases or wooden pallet.
