What is 40 Mesh Stainless Steel Wire Mesh Used For?

Are you looking for a highly reliable, high-precision screening and filtration solution? Our premium 40 mesh stainless steel wire mesh (also referred to as 40 mesh wire cloth or wire screen) offers exceptional structural stability, accurate spacing, and superior resistance to wear and corrosion.

Whether you need heavy-duty industrial extruder screens, precision laboratory sifting, or protective ventilation barriers, we supply custom-woven wire mesh tailored to your exact operational requirements.

Understanding “40 Mesh”: How We Measure It

In the woven wire industry, the term mesh count indicates the density of the wire weave.

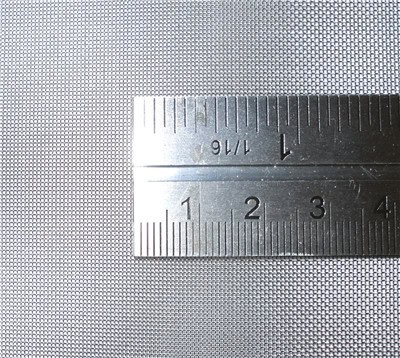

The 1-Inch Ruler Test: If you lay a standard physical ruler onto our 40 Mesh screen, you will count exactly 40 square openings (holes) per linear inch (25.4 mm).

Because the mesh count remains fixed at 40, the actual aperture size (hole clearance) and open area percentage depend on the wire diameter used. Thicker wires provide stronger mechanical resistance but smaller openings, while thinner wires optimize the open area for high-flow gas or liquid filtration.

Materials: Grade 304 vs. Marine-Grade 316 Stainless Steel

To ensure maximum performance in varied environments, we weave our 40 mesh screen using two industry-grade alloys:

1. Standard Grade 304 Stainless Steel (SS 304)

Alloy Composition: 18% Chromium, 8% Nickel.

Recommended For: General dry powder sifting, food-grade processing, indoor venting, and standard agricultural barriers.

Key Advantage: Highly cost-effective with high tensile strength and great oxidation resistance under typical indoor or mild outdoor conditions.

2. Marine-Grade 316 Stainless Steel (SS 316)

Alloy Composition: 16% Chromium, 10% Nickel, and 2% Molybdenum.

Recommended For: Marine and coastal environments, chemical processing plants, acid/alkali filtration, and high-temperature industrial sifting.

Key Advantage: The added molybdenum drastically improves resistance to chloride pitting, crevice corrosion, and harsh chemical attack.

Applications of 40 Mesh Wire Cloth

Due to its precise spacing, which yields clear openings between 0.335 mm (335 microns) and 0.515 mm (515 microns), our 40 mesh stainless steel screen is heavily specified across the following sectors:

1. Industrial Filtration & Machinery

Plastic Extrusion & Fiber Spinning: Used as heavy-duty extruder screen packs to remove contaminants from polymer melts.

Hydraulic Systems: Serves as critical oil and hydraulic fluid filter elements to protect internal machinery.

Air Vents & HVAC Filters: Keeps machinery and air inlets free from particulate debris without restricting vital airflow.

2. Electronics & Shielding

EMI/RFI Shielding: Attenuates electro-magnetic and radio-frequency interference in highly sensitive electronic enclosures and testing environments.

3. Food & Beverage Sifting

Flour Sieve & Powders Sifting: Perfect for industrial food grade sifting of flours, starches, and other dry powders.

Coffee Mesh: Used in reusable coffee filters and brewing machinery to separate fine grounds from liquids.

4. Vivariums, HVAC, & Environmental Control

Vivarium & Terrarium Screen: Allows essential airflow and humidity ventilation while safely enclosing exotic insects and small reptiles.

Vent Screen: Keeps dust, pests, and airborne debris out of home and industrial ventilation shafts.

5. Architectural & Design Aesthetics

Decorative & Cosmetic Mesh: Provides modern metallic paneling, speaker grilles, and fireplace spark guards.

40 Mesh Stainless Steel Wire Mesh Specifications

Refer to our standard technical specification chart below to select the exact wire diameter, aperture, and open area percentage for your application:

mesh	wire D		aperture L		open area rate	square meter weight
	mm	inch	mm	inch	%	kgs	lbs
40	0.30	0.0118	0.335	0.0131	27.83	1.8	3.96
40	0.27	0.0106	0.365	0.0143	33.03	1.45	3.20
40	0.25	0.0098	0.385	0.0151	36.75	1.25	2.75
40	0.23	0.0090	0.405	0.0159	40.67	1.05	2.31
40	0.21	0.0082	0.425	0.0167	44.79	0.88	1.94
40	0.19	0.0074	0.445	0.0175	49.11	0.72	1.58
40	0.17	0.0066	0.465	0.0183	53.62	0.57	1.27
40	0.15	0.0059	0.485	0.0190	58.33	0.45	0.99
40	0.13	0.0051	0.505	0.0198	63.24	0.33	0.74
40	0.12	0.0047	0.515	0.0202	65.77	0.28	0.63

stainless steel wire mesh package

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture proof paper or plastic film, outside wooden cases or wooden pallet.
